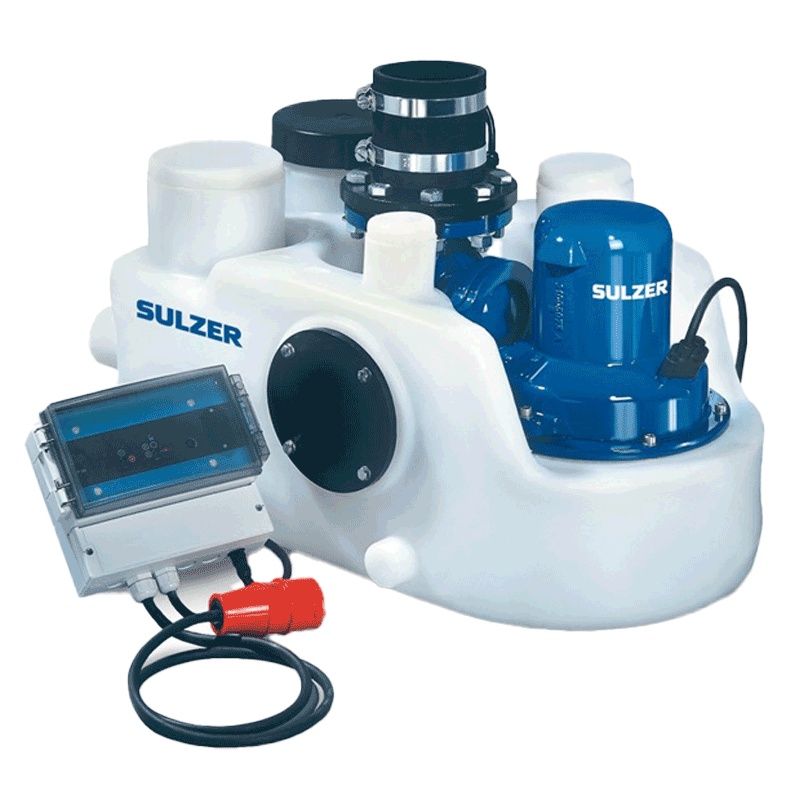

Sulzer Lifting Station Type ABS Sanimat 1000

£5,118.00£5,488.00 Excluding Tax

Guaranteed Safe Checkout
Sulzer Lifting Station Type ABS Sanimat 1000
Dynamic solutions for domestic environments

This lifting station is a flood-proof single lifting station for the removal of wastewater and sewage from areas below the sewer level in accordance with EN 12050-1. Altogether, this is the ideal lifting pump station for the removal of sewage from apartments and large buildings, and for both new and renovated structures.

Capacity: 70 Litres


  1. Kw: 1.4, Voltage: 400, Cable (m): 4, Weight (Kilos): 55
  2. Kw: 2.2, Voltage: 400, Cable (m): 4, Weight (Kilos): 57
  3. Kw: 1.3, Voltage: 230, Cable (m): 4, Weight (Kilos): 55


  • A compact and robust polyethylene tank
  • Easily transported
  • Easy to be fitted, with a compact design allowing it to pass through a standard door opening
  • Ready for installation, with a simple discharge line connection
  • problem-free pumping of sewage and wastewater
  • The tank has a dynamic pressure level sensor, with separate sensors for inflow level and high water alarm


  • Quiet running due to a slow running four pole motor
  • An integrated valve system which features a ball-type, non return valve
  •  A vortex impeller with a large free passage and rear blade mounting, ensuring reliable pumping for both fecal and fecal-free sewage
  • Plug in unit with an earthed plug (230V) or CEE plug (400v) and phase sequence changeover facility
  • A polyethylene tank which is corrosion resistant, gas and odor tight
  • Supplied as standard with pumps, non-return valves and control panel with automatic level control and alarm

View our other lifting stations HERE.


55 m³/h (242 US gpm)


9.5 m (31 ft)


40° C (maximum 60° C for five minutes)

Discharge sizes

Discharge flange DN 80, plus flanged socket with 4” sleeve and clips (for discharge pipe DN 80/100)

Maximum speed of rotation

1,450 min-1
