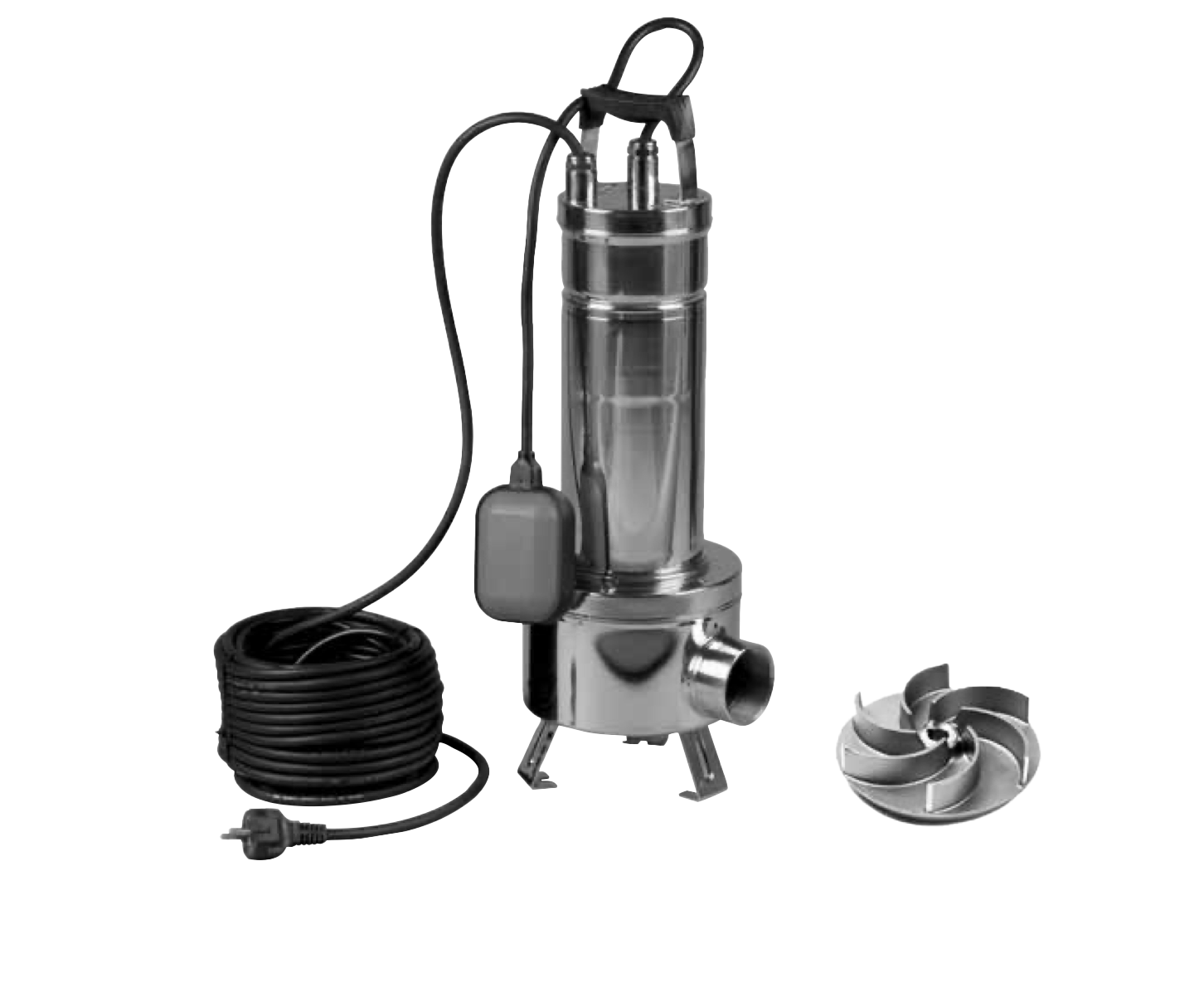

DAB Feka VS Submersible Pump
The DAB Feka VS Submersible Pump is a stainless steel submersible pump with a steel vortex impeller. It is suitable for residential dwellings for wastewater and sewage, containing solid matter with size up to 50mm.

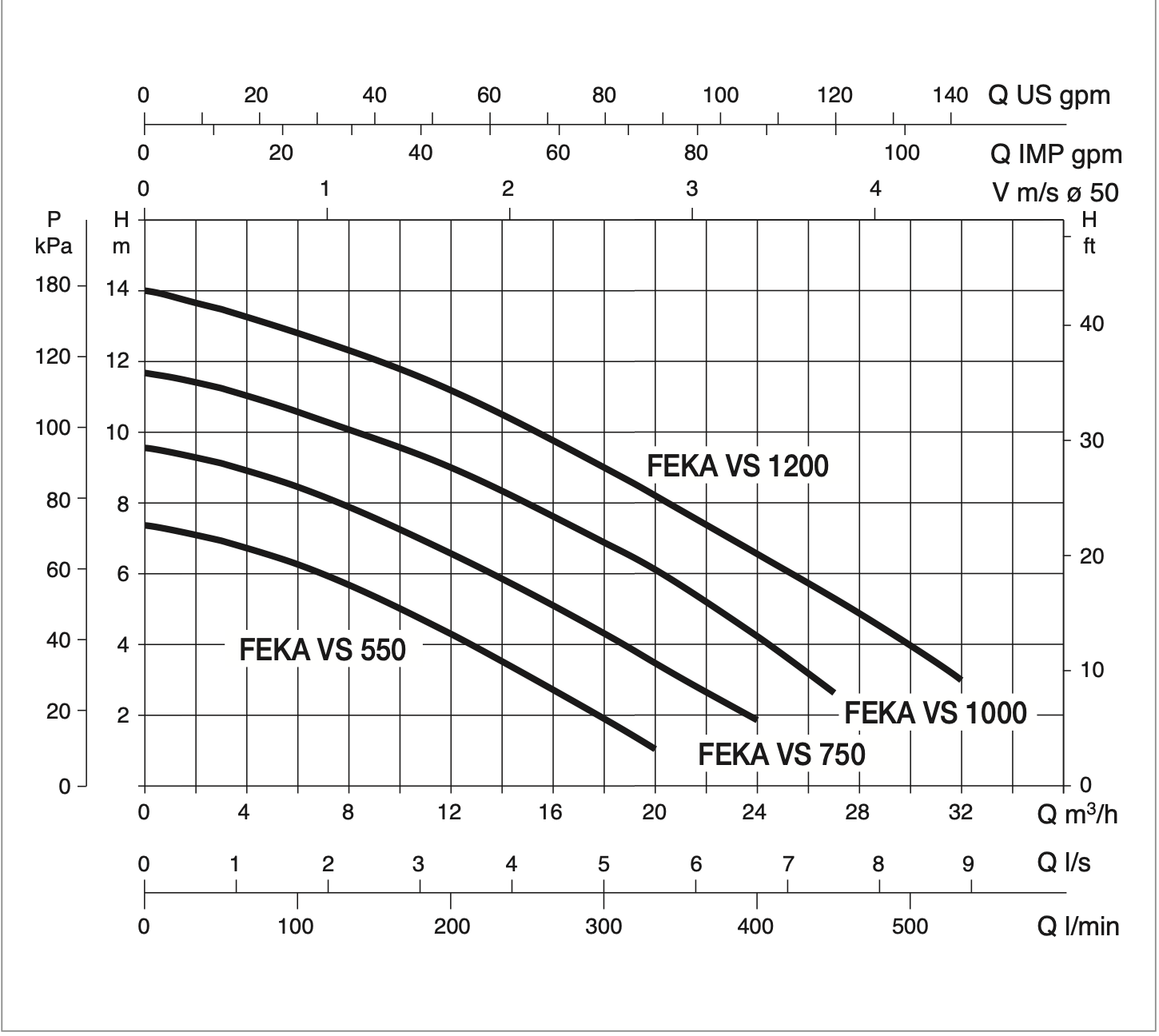

Operating range: from 0 to 32 m3/h with head up to 14 meters.
Free passage: 50 mm.
Liquid temperature range: from 0 °C to +35 °C.
Oultlet: horizontal 2” F.
TECHNICAL DATA
Operating range:
from 0 to 32 m3/h with head up to 14 metres.
Pumped liquid: sewage water and used water in general, non aggressive.
Free passage: 50 mm.
Liquid temperature range:
– from 0 °C to +35 °C for domestic use (EN 60335-2-41).
– from 0 °C to +50 °C for other uses.
Maximum ambient temperature for operation with motor above water: +40 °C
Maximum immersion depth: 7 metres.
Motor protection class: IP 68
Insulation class: F
Standard voltage: 220-240 V – 50Hz single-phase.
380-415 V – 50Hz three-phase.
Power cable:
10 metre H07RN-F, with plug for the single-phase version. Installation: fixed or portable, vertical position.
